Apollo Junior Dynamic Replacement Mattress System
Overview
Key Features
- Dual therapy modes
- Straps with D rings
- Covers are multi stretch
- Auto lockout
Options Available
Apollo Junior Dynamic Replacement Mattress System - DYN/DIG/JUNIOR
Features
• Offering dual therapy modes - Alternating Therapy Mode and Constant Low Pressure (CLP) Therapy Mode
• The Apollo II pump also includes; Max Inflate Mode, Automatic Pressure Control, Comfort Controls, Audible and Visual Alerts and a Mute button. For more information see the Apollo II mattress page.
• Auto lockout - the pump will lockout after 2 minutes of inactivity to prevent accidental setting changes.
• Fully EN 60601-1, EN 60601-1-2 and EN 60601-1-11 compliant.

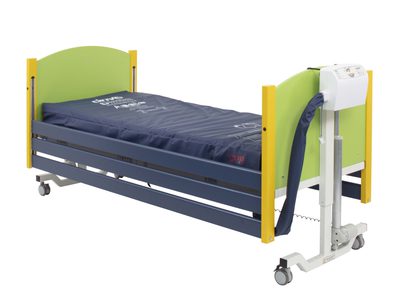

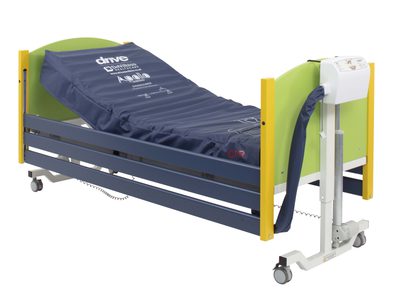

• Designed for use with the Bradshaw Junior Bed.

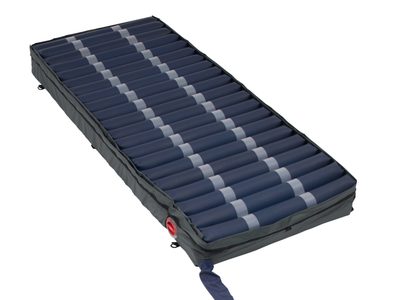

• The Apollo Junior mattress includes 21 cells (3 static head cells and 18 alternating cells).
• A CPR dial is situated at the footend of the bed for rapid deflation in an emergency.

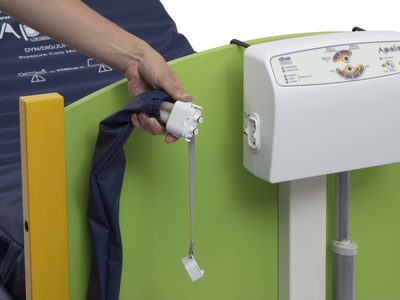

• A Transport Mode facility is achieved by sealing the connector on the umbilical cord with the transport cap. The Transport Mode can be used for up to 8 hours to ensure that the support surface provides pressure redistribution in power outages or when transportation is required.
• The top Dartex® covers are multi stretch, water resistant and vapour permeable, with a 360° zip, welded seams and waterfall flap reduce risk of fluid ingress.

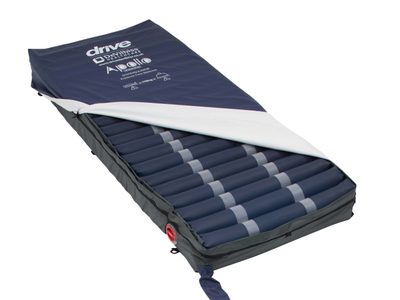

• An anti-fungal agent is encapsulated in the cover to help control microbial deterioration. The cover features a white inner substrate to assist in identifying signs of cover damage and strike-through.
• Includes 8 strategically positioned straps with D rings to enable them to be easily secured to a range of bed frames (moveable parts only).
Product Specifications
| Spec type | DYN/DIG/JUNIOR |
|---|---|
| Width | 78.5cm (30.9") |
| Depth | 17.8cm (7") |
| Length | 193cm (75.9") |
| Cell Cycle Time | 10 mins |
| Cell Cycle Type | 1 in 2 (AB Pattern) |
| Cover Material | PU Multi-stretch, Water Resistant, Vapour Permeable |
| Cycle Time | 10 minutes |
| Fire Retardancy | BS7175:1989 |
| Product Weight | 9.3kg (pump 2.3kg & mattress 7kg) |
| Pump Dimensions (L x W x D) | 20.5 x 28 x 11.5cm |
| Risk Factor | At High Risk |
| Seams | Welded |
| User Weight Capacity | 178kg (28st) |
| Product Warranty | 2 years |
