Apollo II Cushion
Overview
Key Features
- Anti-fungal agent
- Length adjustable strap
- Dual therapy modes
- Auto lockout
Options Available
Features

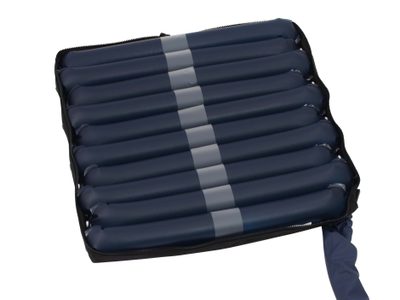

• The Apollo II 18'' Cushion includes 9 cells and the 20'' Cushion includes 10 cells providing an increased surface area when required.

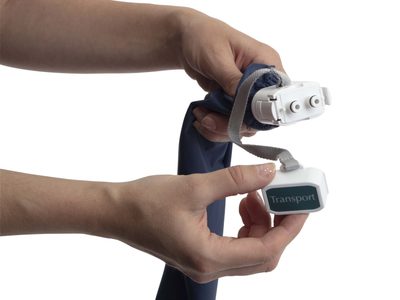

• A Transport Mode facility is achieved by sealing the connector on the umbilical cord with the transport cap. The Transport Mode can be used for up to 8 hours to ensure that the support surface provides pressure redistribution in power outages or when transportation is required.

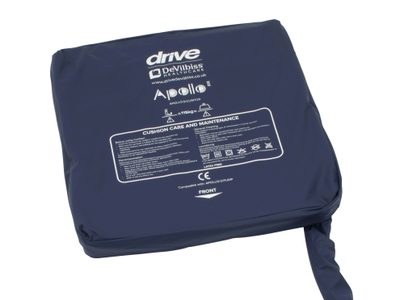

• The top Dartex® covers are multi stretch, water resistant and vapour permeable, with a 360° zip, welded seams and waterfall flap reduce risk of fluid ingress.

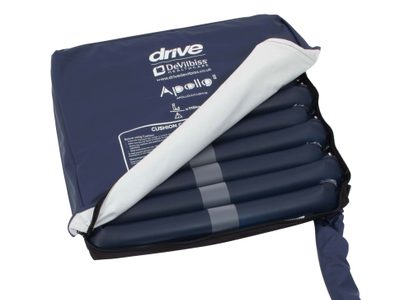

• An anti-fungal agent is encapsulated in the covers to help control microbial deterioration. They feature a white inner substrate to assist in identifying signs of cover damage and strike-through.

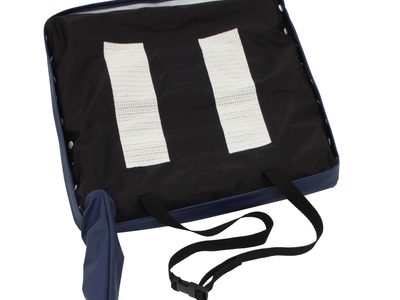

• The cushions feature a length adjustable securing strap with a male/female buckle.
• Dual therapy modes; Alternating Therapy Mode and Constant Low Pressure (CLP) Therapy Mode
• Max Inflate Mode automatically inflates all cells to the maximum pressure setting.
• The Apollo II pump also includes; Automatic Pressure Control, Comfort Controls, Audible and Visual Alerts and a Mute button. For more information see the Apollo II mattress page.
* Please Note - Pump sold separately
• Auto lockout - the pump will lockout after 2 minutes of inactivity to prevent accidental setting changes.
• Fully EN 60601-1, EN 60601-1-2 and EN 60601-1-11 compliant.
Product Specifications
20"
| SKU Code | APOLLO/2/CUSH/20 |
| Width | 50.8cm (20") |
| Depth | 6cm (2.3") |
| Length | 50.8cm (20") |
| Cell Cycle Time | 10 mins |
| Cell Cycle Type | 1 in 2 (AB Pattern) |
| Cover Material | Dartex, Multi-stretch, Water Resistant, Vapour Permeable |
| Cycle Time | 10 minutes |
| Fire Retardancy | BS7175:1989 |
| Product Weight | 3.3kg (pump 2.3kg & cushion 1kg) |
| Pump Dimensions (L x W x D) | 20.5 x 28 x 11.5cm |
| Risk Factor | At High Risk |
| Seams | Welded |
| User Weight Capacity | 115kg (18st) |
| Product Warranty | 2 years |
18"
| SKU Code | APOLLO/2/CUSH/18 |
| Width | 45.8cm (18") |
| Depth | 6cm (2.3") |
| Length | 45.8cm (18") |
| Cell Cycle Time | 10 mins |
| Cell Cycle Type | 1 in 2 (AB Pattern) |
| Cover Material | Dartex, Multi-stretch, Water Resistant, Vapour Permeable |
| Cycle Time | 10 minutes |
| Fire Retardancy | BS7175:1989 |
| Product Weight | 3.3kg (pump 2.3kg & cushion 1kg) |
| Pump Dimensions (L x W x D) | 20.5 x 28 x 11.5cm |
| Risk Factor | At High Risk |
| Seams | Welded |
| User Weight Capacity | 115kg (18st) |
| Product Warranty | 2 years |
| Spec type |
|---|
| SKU Code |
| Width |
| Depth |
| Length |
| Cell Cycle Time |
| Cell Cycle Type |
| Cover Material |
| Cycle Time |
| Fire Retardancy |
| Product Weight |
| Pump Dimensions (L x W x D) |
| Risk Factor |
| Seams |
| User Weight Capacity |
| Product Warranty |
20" |
|---|
| APOLLO/2/CUSH/20 |
| 50.8cm (20") |
| 6cm (2.3") |
| 50.8cm (20") |
| 10 mins |
| 1 in 2 (AB Pattern) |
| Dartex, Multi-stretch, Water Resistant, Vapour Permeable |
| 10 minutes |
| BS7175:1989 |
| 3.3kg (pump 2.3kg & cushion 1kg) |
| 20.5 x 28 x 11.5cm |
| At High Risk |
| Welded |
| 115kg (18st) |
| 2 years |
18" |
|---|
| APOLLO/2/CUSH/18 |
| 45.8cm (18") |
| 6cm (2.3") |
| 45.8cm (18") |
| 10 mins |
| 1 in 2 (AB Pattern) |
| Dartex, Multi-stretch, Water Resistant, Vapour Permeable |
| 10 minutes |
| BS7175:1989 |
| 3.3kg (pump 2.3kg & cushion 1kg) |
| 20.5 x 28 x 11.5cm |
| At High Risk |
| Welded |
| 115kg (18st) |
| 2 years |
