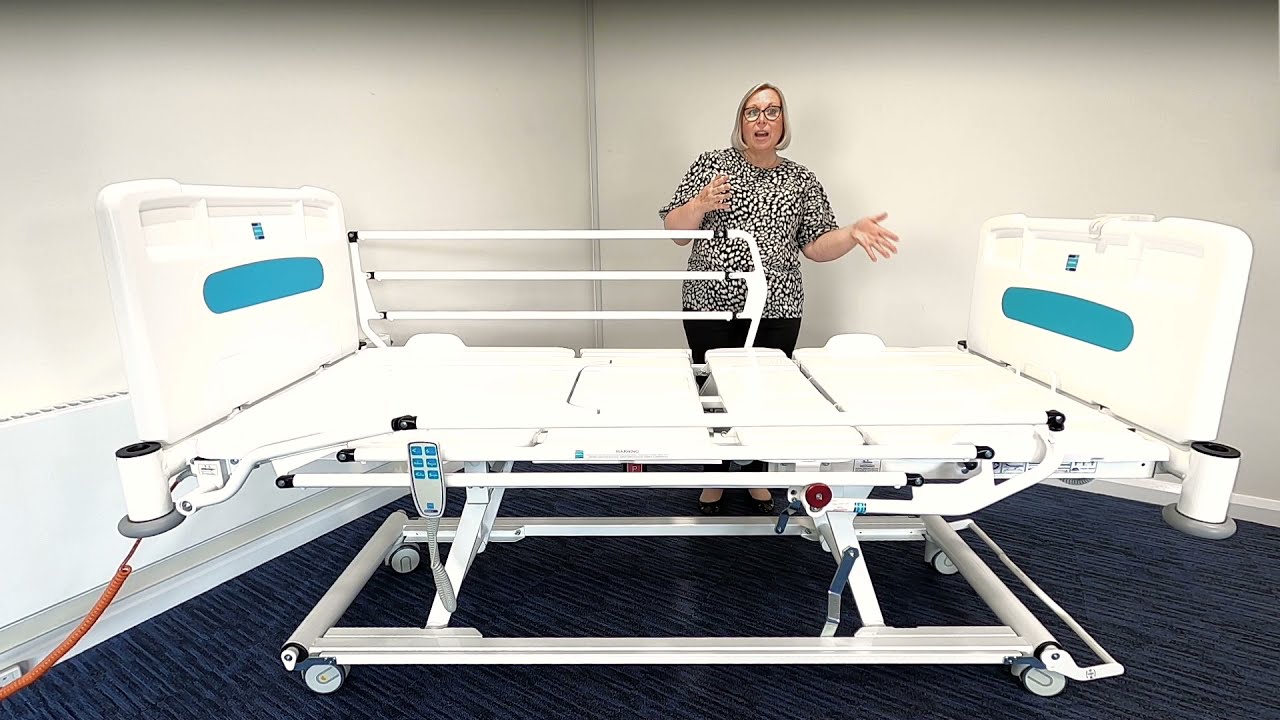

• Safe ingress and egress - the INNOV8 Low bed features an exceptionally low minimum platform height of just 22.5cm that can only be controlled by the Nurse Handset as an added safety feature
• Designed to provide total flexibility in terms of bed specification for applications from general ward beds through to high dependency environments
• Designed for the ultimate in comfort and convenience; exceptional low-to-high range 22.5 to 71cm (+/- 0.5cms) with 12cm underbed clearance.
• Smooth, electrically operated backrest, height and kneebreak (with battery backup)
• Total flexibility; head down tilt (Trendelenburg), foot down tilt (Reverse Trendelenburg), auto-contour and auto-regression plus cardiac chair position
• Simple to use Patient Handset and Nurse Control Panel, with handset lockout
• Dual sided CPR levers
• 12cm under bed clearance for hoist
• Extendable mattress platform length for taller patients (+20cm)
• Central locking braking system accessible from both sides of the bed
• Optional INNOV8 Night Pack to illuminates the underside of the bed, improving patient safety and security
• IPX4 standard ingress protection
• Removable head/foot ends to facilitate cleaning, with colour coding options to assist with estate management
With High Cantilever Side Rails
| SKU Code | INNOV8/LOW/AQ/LINK/HSR |
| Backrest Adjustment Electrical | Yes |
| Backrest Angle | 70° |
| Bed Extension Length | 20cm |
| Central Braking System | Yes |
| CPR Function | Yes |
| Reverse Trendelenburg | 12° |
| Trendelenburg | -12° |
| Knee Break Adjustment Electrical | Yes |
| Leg Rest Angle | 19° |
| Leg Section Adjustment Electrical | Yes |
| Bed Dimensions (W x L) | 102 x 218cm |
| Platform Height (Min - Max) | 22.5 - 71cm |
| Platform Length | 200cm |
| Platform Width | 90cm |
| Safe Working Load | 255kg (40st) |
| User Weight Capacity | 190kg (30st) |
| Product Warranty | 1 year full parts & labour + 2 years parts only |
Low Bed
| SKU Code | INNOV8/LOW/AQ/LINK |
| Backrest Adjustment Electrical | Yes |
| Backrest Angle | 70° |
| Bed Extension Length | 20cm |
| Central Braking System | Yes |
| CPR Function | Yes |
| Reverse Trendelenburg | 12° |
| Trendelenburg | -12° |
| Knee Break Adjustment Electrical | Yes |
| Leg Rest Angle | 19° |
| Leg Section Adjustment Electrical | Yes |
| Bed Dimensions (W x L) | 102 x 218cm |
| Platform Height (Min - Max) | 22.5 - 71cm |
| Platform Length | 200cm |
| Platform Width | 90cm |
| Safe Working Load | 255kg (40st) |
| User Weight Capacity | 190kg (30st) |
| Product Warranty | 1 year full parts & labour + 2 years parts only |
With Standard Cantilever Side Rails
| SKU Code | INNOV8/LOW/AQ/LINK/RSR |
| Backrest Adjustment Electrical | Yes |
| Backrest Angle | 70° |
| Bed Extension Length | 20cm |
| Central Braking System | Yes |
| CPR Function | Yes |
| Reverse Trendelenburg | 12° |
| Trendelenburg | -12° |
| Knee Break Adjustment Electrical | Yes |
| Leg Rest Angle | 19° |
| Leg Section Adjustment Electrical | Yes |
| Bed Dimensions (W x L) | 102 x 218cm |
| Platform Height (Min - Max) | 22.5 - 71cm |
| Platform Length | 200cm |
| Platform Width | 90cm |
| Safe Working Load | 255kg (40st) |
| User Weight Capacity | 190kg (30st) |
| Product Warranty | 1 year full parts & labour + 2 years parts only |
| Spec type |
|---|
| SKU Code |
| Backrest Adjustment Electrical |
| Backrest Angle |
| Bed Extension Length |
| Central Braking System |
| CPR Function |
| Reverse Trendelenburg |
| Trendelenburg |
| Knee Break Adjustment Electrical |
| Leg Rest Angle |
| Leg Section Adjustment Electrical |
| Bed Dimensions (W x L) |
| Platform Height (Min - Max) |
| Platform Length |
| Platform Width |
| Safe Working Load |
| User Weight Capacity |
| Product Warranty |
With High Cantilever Side Rails |
|---|
| INNOV8/LOW/AQ/LINK/HSR |
| Yes |
| 70° |
| 20cm |
| Yes |
| Yes |
| 12° |
| -12° |
| Yes |
| 19° |
| Yes |
| 102 x 218cm |
| 22.5 - 71cm |
| 200cm |
| 90cm |
| 255kg (40st) |
| 190kg (30st) |
| 1 year full parts & labour + 2 years parts only |
Low Bed |
|---|
| INNOV8/LOW/AQ/LINK |
| Yes |
| 70° |
| 20cm |
| Yes |
| Yes |
| 12° |
| -12° |
| Yes |
| 19° |
| Yes |
| 102 x 218cm |
| 22.5 - 71cm |
| 200cm |
| 90cm |
| 255kg (40st) |
| 190kg (30st) |
| 1 year full parts & labour + 2 years parts only |
With Standard Cantilever Side Rails |
|---|
| INNOV8/LOW/AQ/LINK/RSR |
| Yes |
| 70° |
| 20cm |
| Yes |
| Yes |
| 12° |
| -12° |
| Yes |
| 19° |
| Yes |
| 102 x 218cm |
| 22.5 - 71cm |
| 200cm |
| 90cm |
| 255kg (40st) |
| 190kg (30st) |
| 1 year full parts & labour + 2 years parts only |
