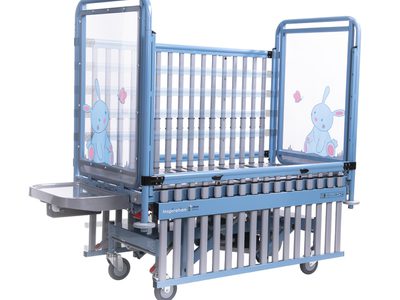

• The integral side rails are telescopic, drop-down rails that have 6 adjustable height positions
• Side rails cannot be accidentally lowered or operated by the infant
• Side Rail Heights (Above mattress platform): Position 1: 71.5cm, Position 2: 59cm, Position 3: 46.5cm, Position 4: 34cm, Position 5: 21.5cm, Position 6: 8cm

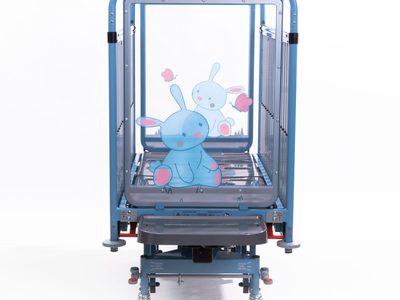

• The transparent head and foot ends are easily removable for 360° access
• The ends also aid visibility into the cot for monitoring the infant
• A playful bunny and butterfly design, and a modern pastel colour palette
• The design of the head and foot ends allows access for IV lines and other tubes at either side of the panels
• Easy to manoeuvre with its 12cm anti-static castors and colour coded linked brake bar pedals

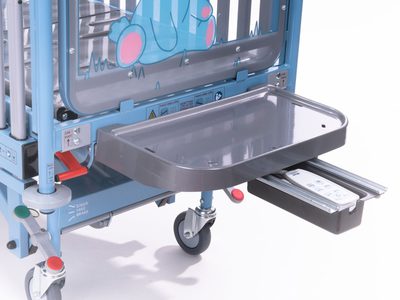

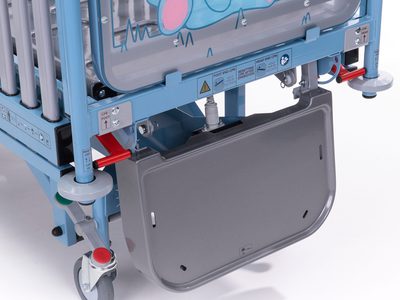

• A useful drop-down shelf is located at the foot end, which can be folded away when not required (taking a load of 30kg)
• The shelf allows for dynamic pumps to be suspended if the shelf is being used or folded away
• The handset controls the cot height and head / foot down tilt functions, it will also automatically lock out after 30 seconds of inactivity
• Self-locking handset box, which is located underneath the shelf

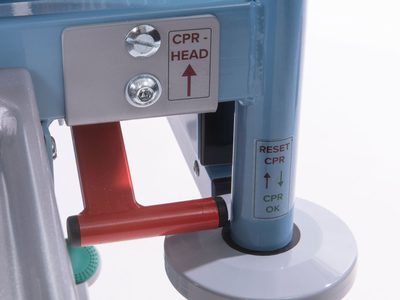

• The 9005 models platform can be levelled quickly in an emergency situation by pulling the red CPR handles
• Protective buffers on each corner of the cot
• Two accessory sockets are available at the head end of the cot for IV poles or oxygen cylinder carriers
• A choice of static or dynamic mattress systems are available for use with the Inspiration 2 Cot
Cot with CPR
| SKU Code | 9005/MPBA |
| Width | 86cm |
| Length | 176cm |
| Central Braking System | Yes |
| Reverse Trendelenburg | 10° |
| Trendelenburg | -10° |
| Bed Dimensions (W x L) | 86 x 176cm |
| Platform Height (Min - Max) | 58 - 92cm |
| Platform Length | 133.5cm |
| Platform Width | 68cm |
| Product Weight | 130kg |
| Safe Working Load | 88kg tilted (13.9st), 160kg flat (25.2st) |
| Underbed Clearance | 8.3cm |
| User Weight Capacity | 43kg (6.7st) |
| Product Warranty | 3 years (1 year full parts and labour, 2 years parts only) |
Cot without CPR
| SKU Code | 9004/MPBA |
| Width | 86cm |
| Length | 176cm |
| Central Braking System | Yes |
| Reverse Trendelenburg | 10° |
| Trendelenburg | -10° |
| Bed Dimensions (W x L) | 86 x 176cm |
| Platform Height (Min - Max) | 58 - 92cm |
| Platform Length | 133.5cm |
| Platform Width | 68cm |
| Product Weight | 130kg |
| Safe Working Load | 88kg tilted (13.9st), 160kg flat (25.2st) |
| Underbed Clearance | 8.3cm |
| User Weight Capacity | 43kg (6.7st) |
| Product Warranty | 3 years (1 year full parts and labour, 2 years parts only) |
Cot with CPR and Lullaby VE Mattress
| SKU Code | 9005 |
| Width | 86cm |
| Length | 176cm |
| Central Braking System | Yes |
| Reverse Trendelenburg | 10° |
| Trendelenburg | -10° |
| Bed Dimensions (W x L) | 86 x 176cm |
| Platform Height (Min - Max) | 58 - 92cm |
| Platform Length | 133.5cm |
| Platform Width | 68cm |
| Product Weight | 130kg |
| Safe Working Load | 88kg tilted (13.9st), 160kg flat (25.2st) |
| Underbed Clearance | 8.3cm |
| User Weight Capacity | 43kg (6.7st) |
| Product Warranty | 3 years (1 year full parts and labour, 2 years parts only) |
Cot without CPR, with Lullaby VE Mattress
| SKU Code | 9004 |
| Width | 86cm |
| Length | 176cm |
| Central Braking System | Yes |
| Reverse Trendelenburg | 10° |
| Trendelenburg | -10° |
| Bed Dimensions (W x L) | 86 x 176cm |
| Platform Height (Min - Max) | 58 - 92cm |
| Platform Length | 133.5cm |
| Platform Width | 68cm |
| Product Weight | 130kg |
| Safe Working Load | 88kg tilted (13.9st), 160kg flat (25.2st) |
| Underbed Clearance | 8.3cm |
| User Weight Capacity | 43kg (6.7st) |
| Product Warranty | 3 years (1 year full parts and labour, 2 years parts only) |
| Spec type |
|---|
| SKU Code |
| Width |
| Length |
| Central Braking System |
| Reverse Trendelenburg |
| Trendelenburg |
| Bed Dimensions (W x L) |
| Platform Height (Min - Max) |
| Platform Length |
| Platform Width |
| Product Weight |
| Safe Working Load |
| Underbed Clearance |
| User Weight Capacity |
| Product Warranty |
Cot with CPR |
|---|
| 9005/MPBA |
| 86cm |
| 176cm |
| Yes |
| 10° |
| -10° |
| 86 x 176cm |
| 58 - 92cm |
| 133.5cm |
| 68cm |
| 130kg |
| 88kg tilted (13.9st), 160kg flat (25.2st) |
| 8.3cm |
| 43kg (6.7st) |
| 3 years (1 year full parts and labour, 2 years parts only) |
Cot without CPR |
|---|
| 9004/MPBA |
| 86cm |
| 176cm |
| Yes |
| 10° |
| -10° |
| 86 x 176cm |
| 58 - 92cm |
| 133.5cm |
| 68cm |
| 130kg |
| 88kg tilted (13.9st), 160kg flat (25.2st) |
| 8.3cm |
| 43kg (6.7st) |
| 3 years (1 year full parts and labour, 2 years parts only) |
Cot with CPR and Lullaby VE Mattress |
|---|
| 9005 |
| 86cm |
| 176cm |
| Yes |
| 10° |
| -10° |
| 86 x 176cm |
| 58 - 92cm |
| 133.5cm |
| 68cm |
| 130kg |
| 88kg tilted (13.9st), 160kg flat (25.2st) |
| 8.3cm |
| 43kg (6.7st) |
| 3 years (1 year full parts and labour, 2 years parts only) |
Cot without CPR, with Lullaby VE Mattress |
|---|
| 9004 |
| 86cm |
| 176cm |
| Yes |
| 10° |
| -10° |
| 86 x 176cm |
| 58 - 92cm |
| 133.5cm |
| 68cm |
| 130kg |
| 88kg tilted (13.9st), 160kg flat (25.2st) |
| 8.3cm |
| 43kg (6.7st) |
| 3 years (1 year full parts and labour, 2 years parts only) |
