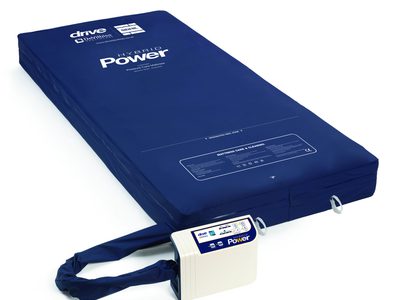

Hybrid Power & Pump
Overview
The time taken to move a patient out of bed to swap a support surface impacts on quality nursing time. If a patient requires a different therapy to be either 'stepped up' or 'stepped down', there can be a number of restraints. In addition, the costs associated with support surfaces can increase when two different surfaces are required.
Key Features
- Full width heel zone
- Max inflate, Alternating mode
- Auto-lock function
- 1-in-2 alternating therapy
Options Available
Hybrid Power & Pump - HYB/POWER
Features
• Max inflate, Alternating mode & Static mode (remove pump)
• Auto-lock function
• Audible & visual alerts
• 1-in-2 alternating therapy on foam
• Auto lock function
• A full width heel zone with smaller castellations to support the vulnerable heel area
• High density side formers to support and assist with patient transfers in and out of the bed
• Pump dimensions: 31 x 21 x 12.5cm

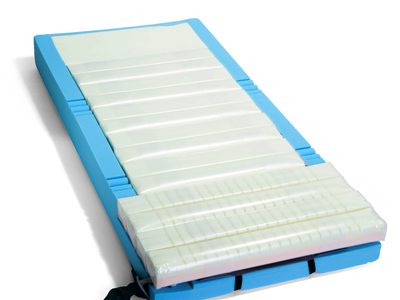

• Turning pillow & 14 alternating cells (10 body section & 4 heel zone cells) on a foam base
Product Specifications
| Spec type | HYB/POWER |
|---|---|
| Width | 88cm (34.6") |
| Depth | 16cm (6.2") |
| Length | 198cm (5.9") |
| Cell Cycle Time | 10 mins |
| Cell Cycle Type | 1 in 2 (AB Pattern) |
| Cover Material | PU coated fabric |
| Cycle Time | 10 minutes |
| Fire Retardancy | BS7175:1989 |
| Product Weight | 18.5kg (pump 2.5kg & 16kg mattress) |
| Risk Factor | At Very High Risk |
| Seams | Welded |
| User Weight Capacity | 254kg (40st) |
| Product Warranty | 2 Years |
