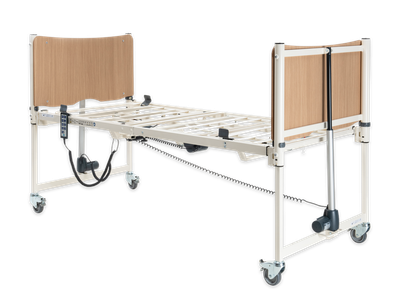

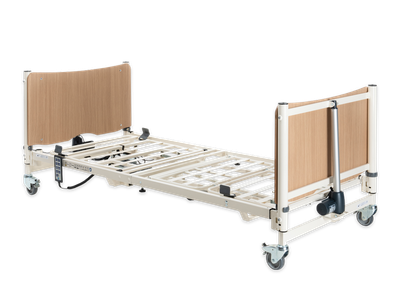

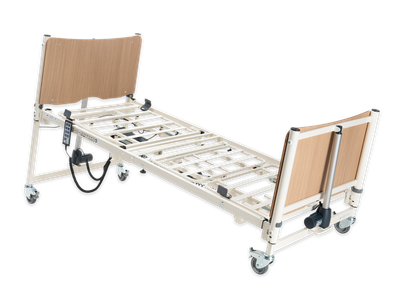

Solite Pro Low
Overview
Key Features
- Electric profiling low bed
- Auto regressing backrest
- Integral leg extension
- Four braked 10cm castors
Options Available
Features

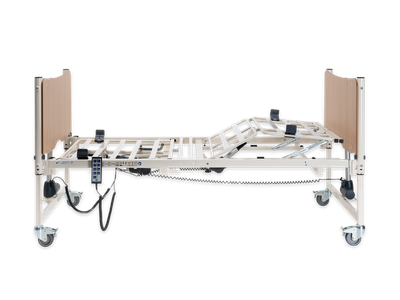

• Electrically profiling bed with back rest and knee break function, variable height control and auto contour.

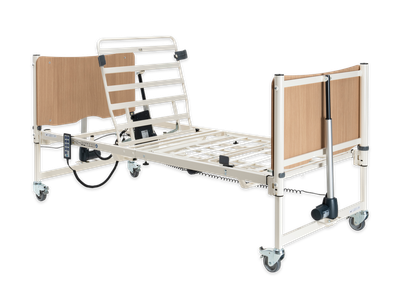

• The auto regressing backrest increases the space in the pelvic area by sliding the backrest backwards as it is raised.
• Built-in integral leg extension for taller patients, including auto stop for added safety
• 12° foot down tilt with head down tilt available as an optional extra.
• Optional integral full length side rails for safety and ease of use
• Wooden head and foot ends offer an attractive and domestic feel
• Four braked 10cm castors for manoeuvrability and safety
• Corner locking mechanism for easy assembly and disassembly; no tools required
• Compliance to EN60601-2-52 and EN60601-1-11 and externally certified by TUV
• In-built transport stand storage locators below the mattress platform
• Cardiac chair position can be achieved to maximise the sitting position; enhancing patient comfort, promoting independence and supporting activities of daily living
• Verified to the latest requirements of IEC 60601-1 general medical electrical equipment standard, IEC 60601-2-52 medical bed standard and IEC 60601-1-11 medical electrical equipment standard specific to home care requirements
• Full range of options including different side rails, patient lifting pole, drip pole, mattresses, padding and bumpers
Product Specifications
Solite Pro Low with Battery Backup and Side Rails
| SKU Code | SOLITE/PRO/LOW/BB/WSR |
| Backrest Adjustment Electrical | Yes |
| Bed Extension Length | 16.5cm |
| Reverse Trendelenburg | 12° |
| Trendelenburg | Option available -12° |
| Knee Break Adjustment Electrical | Yes |
| Leg Section Adjustment Electrical | Yes |
| Bed Dimensions (W x L) | 96.5 x 223cm |
| Platform Height (Min - Max) | 29.5 - 71.5cm |
| Platform Length | 201cm |
| Platform Width | 90.5cm |
| Safe Working Load | 226kg (35.5st) |
| User Weight Capacity | 191kg (30st) |
Solite Pro Low with Side Rails
| SKU Code | SOLITE/PRO/LOW/WSR |
| Backrest Adjustment Electrical | Yes |
| Bed Extension Length | 16.5cm |
| Reverse Trendelenburg | 12° |
| Trendelenburg | Option available -12° |
| Knee Break Adjustment Electrical | Yes |
| Leg Section Adjustment Electrical | Yes |
| Bed Dimensions (W x L) | 96.5 x 223cm |
| Platform Height (Min - Max) | 29.5 - 71.5cm |
| Platform Length | 201cm |
| Platform Width | 90.5cm |
| Safe Working Load | 226kg (35.5st) |
| User Weight Capacity | 191kg (30st) |
Solite Pro Low with Battery Backup
| SKU Code | SOLITE/PRO/LOW/BB |
| Backrest Adjustment Electrical | Yes |
| Bed Extension Length | 16.5cm |
| Reverse Trendelenburg | 12° |
| Trendelenburg | Option available -12° |
| Knee Break Adjustment Electrical | Yes |
| Leg Section Adjustment Electrical | Yes |
| Bed Dimensions (W x L) | 96.5 x 223cm |
| Platform Height (Min - Max) | 29.5 - 71.5cm |
| Platform Length | 201cm |
| Platform Width | 90.5cm |
| Safe Working Load | 226kg (35.5st) |
| User Weight Capacity | 191kg (30st) |
Solite Pro Low
| SKU Code | SOLITE/PRO/LOW |
| Backrest Adjustment Electrical | Yes |
| Bed Extension Length | 16.5cm |
| Reverse Trendelenburg | 12° |
| Trendelenburg | Option available -12° |
| Knee Break Adjustment Electrical | Yes |
| Leg Section Adjustment Electrical | Yes |
| Bed Dimensions (W x L) | 96.5 x 223cm |
| Platform Height (Min - Max) | 29.5 - 71.5cm |
| Platform Length | 201cm |
| Platform Width | 90.5cm |
| Safe Working Load | 226kg (35.5st) |
| User Weight Capacity | 191kg (30st) |
| Spec type |
|---|
| SKU Code |
| Backrest Adjustment Electrical |
| Bed Extension Length |
| Reverse Trendelenburg |
| Trendelenburg |
| Knee Break Adjustment Electrical |
| Leg Section Adjustment Electrical |
| Bed Dimensions (W x L) |
| Platform Height (Min - Max) |
| Platform Length |
| Platform Width |
| Safe Working Load |
| User Weight Capacity |
Solite Pro Low with Battery Backup and Side Rails |
|---|
| SOLITE/PRO/LOW/BB/WSR |
| Yes |
| 16.5cm |
| 12° |
| Option available -12° |
| Yes |
| Yes |
| 96.5 x 223cm |
| 29.5 - 71.5cm |
| 201cm |
| 90.5cm |
| 226kg (35.5st) |
| 191kg (30st) |
Solite Pro Low with Side Rails |
|---|
| SOLITE/PRO/LOW/WSR |
| Yes |
| 16.5cm |
| 12° |
| Option available -12° |
| Yes |
| Yes |
| 96.5 x 223cm |
| 29.5 - 71.5cm |
| 201cm |
| 90.5cm |
| 226kg (35.5st) |
| 191kg (30st) |
Solite Pro Low with Battery Backup |
|---|
| SOLITE/PRO/LOW/BB |
| Yes |
| 16.5cm |
| 12° |
| Option available -12° |
| Yes |
| Yes |
| 96.5 x 223cm |
| 29.5 - 71.5cm |
| 201cm |
| 90.5cm |
| 226kg (35.5st) |
| 191kg (30st) |
Solite Pro Low |
|---|
| SOLITE/PRO/LOW |
| Yes |
| 16.5cm |
| 12° |
| Option available -12° |
| Yes |
| Yes |
| 96.5 x 223cm |
| 29.5 - 71.5cm |
| 201cm |
| 90.5cm |
| 226kg (35.5st) |
| 191kg (30st) |
