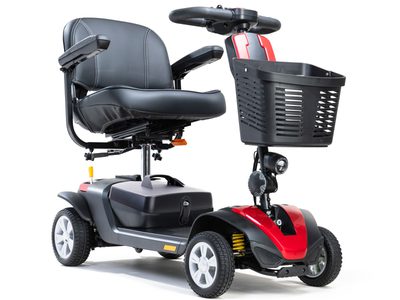

Valiant
Overview
This model is simple and easy to dismantle into five parts, making for simple storage and transportation.
Optional wing mirrors available - ZCMS056
Key Features
- Easy split boot scooter
- All-round suspension
- Swivel & sliding seat
- Angle adjustable tiller
Options Available
Features
• Easily split boot scooter
• New sleek and stylish design
• All-round suspension for supreme ride quality
• 360º swivel seat with slide function to move forward/back for extra legroom
• Angle adjustable tiller to ensure easy reach and comfort
• Easy to use controls
• Handy USB port for charging small devices
• On and off board charging
• Padded seat and backrest
• Delta bar for comfort
• Removable and adjustable padded armrests
• Striking stitched upholstery
• Handy storage pouch on the backrest
• Storage basket
• Easy-access charging socket
• Simple and easy to dismantle into 5 parts to support with transportation
• Automatic and electromagnetic braking system
• Anti-tip wheels
• 20Ah sealed batteries
• Maximum range of 12.4 miles (20km)
• Max speed of 4mph
• Solid, puncture proof PU tyres
• Weight capacity of 136kg (21.4st)
• Front section with post: 20.1kg
• Rear section: 13.85kg
• Seat weight 12.1kg
• Optional wing mirrors available - ZCMS056
Product Specifications
Blue
| SKU Code | CMS004BL |
| Height | 97cm (38") |
| Width | 62.5cm (24.6") |
| Length | 121cm (47.6") |
| Seat Height | 38cm |
| Seat Depth | 37cm |
| Seat Width | 46cm |
| Batteries | 20Ah sealed lead acid |
| Battery Weight | 14kg |
| Ground Clearance | 7cm (2.75") |
| Max Gradient | 8º |
| Product Weight | 60kg (132.3lbs) |
| Turning Radius | 140cm (55") |
| User Weight Capacity | 136kg (21.4st) |
| Range | 12.4 miles (20km) |
| Carry Weight | 48kg |
Red
| SKU Code | CMS004RD |
| Height | 97cm (38") |
| Width | 62.5cm (24.6") |
| Length | 121cm (47.6") |
| Seat Height | 38cm |
| Seat Depth | 37cm |
| Seat Width | 46cm |
| Batteries | 20Ah sealed lead acid |
| Battery Weight | 14kg |
| Ground Clearance | 7cm (2.75") |
| Max Gradient | 8º |
| Product Weight | 60kg (132.3lbs) |
| Turning Radius | 140cm (55") |
| User Weight Capacity | 136kg (21.4st) |
| Range | 12.4 miles (20km) |
| Carry Weight | 48kg |
| Spec type |
|---|
| SKU Code |
| Height |
| Width |
| Length |
| Seat Height |
| Seat Depth |
| Seat Width |
| Batteries |
| Battery Weight |
| Ground Clearance |
| Max Gradient |
| Product Weight |
| Turning Radius |
| User Weight Capacity |
| Range |
| Carry Weight |
Blue |
|---|
| CMS004BL |
| 97cm (38") |
| 62.5cm (24.6") |
| 121cm (47.6") |
| 38cm |
| 37cm |
| 46cm |
| 20Ah sealed lead acid |
| 14kg |
| 7cm (2.75") |
| 8º |
| 60kg (132.3lbs) |
| 140cm (55") |
| 136kg (21.4st) |
| 12.4 miles (20km) |
| 48kg |
Red |
|---|
| CMS004RD |
| 97cm (38") |
| 62.5cm (24.6") |
| 121cm (47.6") |
| 38cm |
| 37cm |
| 46cm |
| 20Ah sealed lead acid |
| 14kg |
| 7cm (2.75") |
| 8º |
| 60kg (132.3lbs) |
| 140cm (55") |
| 136kg (21.4st) |
| 12.4 miles (20km) |
| 48kg |
